PhysicsSystem Class Reference

Static utility class handling AABB collisions, velocity integration, and DDA raycasting. More...

#include <src/physics/PhysicsSystem.h>

Collaboration diagram for PhysicsSystem:

Static Public Member Functions
static void	Update (RigidBody &objRigidBody, float fDeltaTime, const ChunkManager &objChunkManager, bool bFlyMode=false)
	Updates physics (Gravity, Friction, Velocity).
static RayHit	RayCast (const Core::Ray &objRay, float fMaxDistance, const ChunkManager &objChunkManager)
	Performs a DDA Raycast to find the first block hit.

Static Private Member Functions
static bool	checkCollision (const AABB &objAABB, const ChunkManager &objChunkManager)
static float	lerp (float a, float b, float t)

Detailed Description

Static utility class handling AABB collisions, velocity integration, and DDA raycasting.

Member Function Documentation

checkCollision()

bool PhysicsSystem::checkCollision ( const AABB &  objAABB, const ChunkManager &  objChunkManager  )

staticprivate

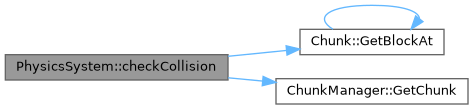

Here is the call graph for this function:

Here is the caller graph for this function:

lerp()

static float PhysicsSystem::lerp ( float  a, float  b, float  t  )

inlinestaticprivate

Here is the caller graph for this function:

RayCast()

RayHit PhysicsSystem::RayCast ( const Core::Ray &  objRay, float  fMaxDistance, const ChunkManager &  objChunkManager  )

static

Performs a DDA Raycast to find the first block hit.

• Parameters

  objRay

  The properties of the Ray (Input:Direction & Output: Found a hit or not, Hit point, Distance & Block Pos(X, Y & Z)).

• Parameters

  fMaxDistance

  Maximum distance that the ray can travel in space.

• Parameters

  objChunkManager

  World data for collision checks.

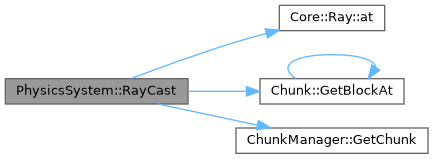

Here is the call graph for this function:

Here is the caller graph for this function:

Update()

void PhysicsSystem::Update ( RigidBody &  objRigidBody, float  fDeltaTime, const ChunkManager &  objChunkManager, bool  bFlyMode = false  )

static

Updates physics (Gravity, Friction, Velocity).

Parameters

objRigidBody	The body to update.
fDeltaTime	Time since last frame.
objChunkManager	World data for collision checks.
bFlyMode	If true, disables gravity.

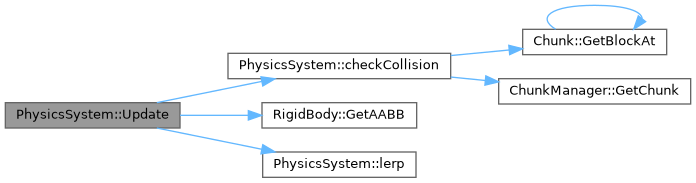

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/physics/PhysicsSystem.h
• src/physics/PhysicsSystem.cpp
