Core::Camera Class Reference

Processes input and calculates the View Matrix for OpenGL rendering. More...

#include <src/core/camera.h>

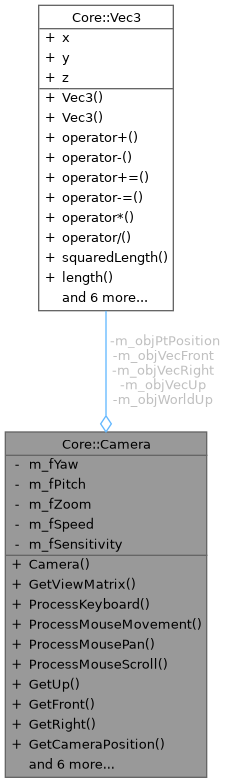

Collaboration diagram for Core::Camera:

Public Member Functions
	Camera (Vec3 startPos=Vec3(0.0f, 0.0f, 0.0f), Vec3 startUP=Vec3(0.0f, 1.0f, 0.0f))
	Constructs the camera at a specific position.
Mat4	GetViewMatrix ()
	Calculates the LookAt View Matrix.
void	ProcessKeyboard (int iDirection, float fDeltaTime)
	Moves the camera based on keyboard input direction.
void	ProcessMouseMovement (float fXOffset, float fYOffset, bool bConstrainPitch=true)
	Rotates the camera based on mouse movement.
void	ProcessMousePan (float fXOffset, float fYOffset)
	Pans the camera (Editor style movement).
void	ProcessMouseScroll (float fYOffset)
	Zooms (changes FOV) based on scroll wheel.
Vec3	GetUp () const
Vec3	GetFront () const
Vec3	GetRight () const
Vec3	GetCameraPosition () const
float	GetZoom () const
void	SetCameraPosition (const Vec3 &position)
void	SetCameraFront (const Vec3 &front)
void	SetCameraZoom (float zoom)
void	SetCameraYawPitch (float yaw, float pitch)
void	UpdateCameraVectors ()
	Recalculates Front, Right, and Up vectors from Euler angles.

Private Attributes
Vec3	m_objPtPosition
Vec3	m_objVecFront
Vec3	m_objVecUp
Vec3	m_objVecRight
Vec3	m_objWorldUp
float	m_fYaw = YAW
float	m_fPitch = PITCH
float	m_fZoom = ZOOM
float	m_fSpeed = SPEED
float	m_fSensitivity = SENSITIVITY

Detailed Description

Processes input and calculates the View Matrix for OpenGL rendering.

• Implements a standard Euler Angle (Yaw/Pitch) FPS camera.

Constructor & Destructor Documentation

Camera()

Core::Camera::Camera ( Vec3  startPos = Vec3(0.0f, 0.0f, 0.0f), Vec3  startUP = Vec3(0.0f, 1.0f, 0.0f)  )

inline

Constructs the camera at a specific position.

Parameters

startPos	Initial world space position.
startUP	World's "Up" direction (usually 0,1,0).

Here is the call graph for this function:

Member Function Documentation

GetCameraPosition()

Vec3 Core::Camera::GetCameraPosition ( ) const

inline

Here is the caller graph for this function:

GetFront()

Vec3 Core::Camera::GetFront ( ) const

inline

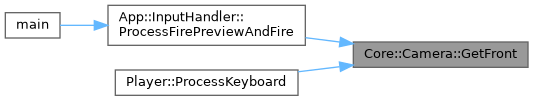

Here is the caller graph for this function:

GetRight()

Vec3 Core::Camera::GetRight ( ) const

inline

Here is the caller graph for this function:

GetUp()

Vec3 Core::Camera::GetUp ( ) const

inline

Here is the caller graph for this function:

GetViewMatrix()

Mat4 Core::Camera::GetViewMatrix ( )

inline

Calculates the LookAt View Matrix.

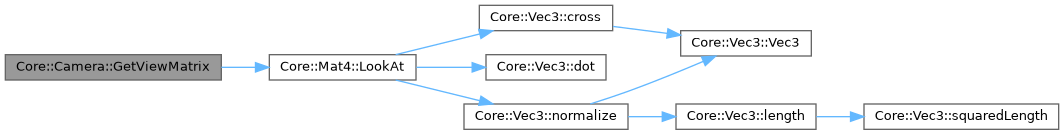

Here is the call graph for this function:

Here is the caller graph for this function:

GetZoom()

float Core::Camera::GetZoom ( ) const

inline

ProcessKeyboard()

void Core::Camera::ProcessKeyboard ( int  iDirection, float  fDeltaTime  )

inline

Moves the camera based on keyboard input direction.

Parameters

iDirection	Enum/Int representing direction (0=Fwd, 1=Back, 2=Left, 3=Right, 4=Up, 5=Down).
fDeltaTime	Time elapsed per frame.

ProcessMouseMovement()

void Core::Camera::ProcessMouseMovement ( float  fXOffset, float  fYOffset, bool  bConstrainPitch = true  )

inline

Rotates the camera based on mouse movement.

Parameters

fXOffset	Mouse X delta.
fYOffset	Mouse Y delta.
bConstrainPitch	If true, prevents camera from flipping upside down.

Here is the call graph for this function:

Here is the caller graph for this function:

ProcessMousePan()

void Core::Camera::ProcessMousePan ( float  fXOffset, float  fYOffset  )

inline

Pans the camera (Editor style movement).

ProcessMouseScroll()

void Core::Camera::ProcessMouseScroll ( float  fYOffset )

inline

Zooms (changes FOV) based on scroll wheel.

SetCameraFront()

void Core::Camera::SetCameraFront ( const Vec3 &  front )

inline

Here is the call graph for this function:

SetCameraPosition()

void Core::Camera::SetCameraPosition ( const Vec3 &  position )

inline

Here is the caller graph for this function:

SetCameraYawPitch()

void Core::Camera::SetCameraYawPitch ( float  yaw, float  pitch  )

inline

Here is the call graph for this function:

SetCameraZoom()

void Core::Camera::SetCameraZoom ( float  zoom )

inline

UpdateCameraVectors()

void Core::Camera::UpdateCameraVectors ( )

inline

Recalculates Front, Right, and Up vectors from Euler angles.

Here is the call graph for this function:

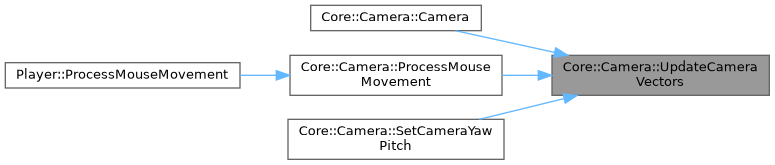

Here is the caller graph for this function:

Member Data Documentation

m_fPitch

float Core::Camera::m_fPitch = PITCH

private

m_fSensitivity

float Core::Camera::m_fSensitivity = SENSITIVITY

private

m_fSpeed

float Core::Camera::m_fSpeed = SPEED

private

m_fYaw

float Core::Camera::m_fYaw = YAW

private

m_fZoom

float Core::Camera::m_fZoom = ZOOM

private

m_objPtPosition

Vec3 Core::Camera::m_objPtPosition

private

m_objVecFront

Vec3 Core::Camera::m_objVecFront

private

m_objVecRight

Vec3 Core::Camera::m_objVecRight

private

m_objVecUp

Vec3 Core::Camera::m_objVecUp

private

m_objWorldUp

Vec3 Core::Camera::m_objWorldUp

private

---

The documentation for this class was generated from the following file:

• src/core/camera.h
